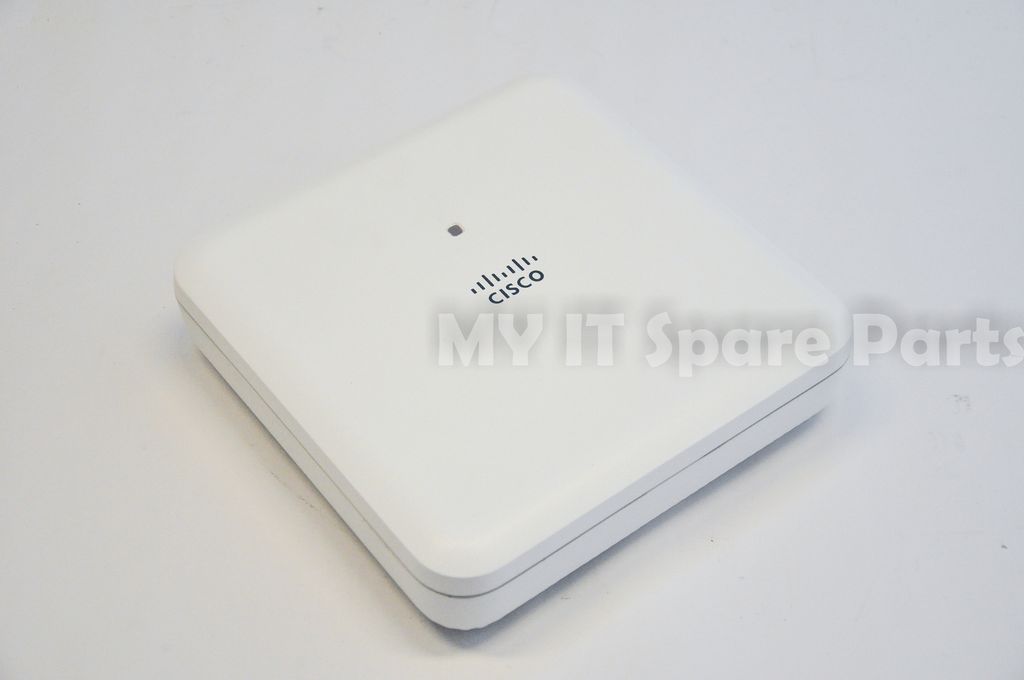

Cisco Aironet 1832i Access Point AIR-AP1832I-K-K9 AIR-AP1832I-K-K9C

Description

802.11ac Wave 2 AP, 3x3:2, Internal Antenna, K Regulatory Domain

Features

- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO

- MRC

- 802.11ac beamforming (transmit beamforming)

- 20-, 40-, and 80-MHz channels

- PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

Regulatory Domain

K (K regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.620 GHz; 7 channels

- 5.745 to 5.805 GHz; 4 channels

Integrated antenna

- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

- 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)
